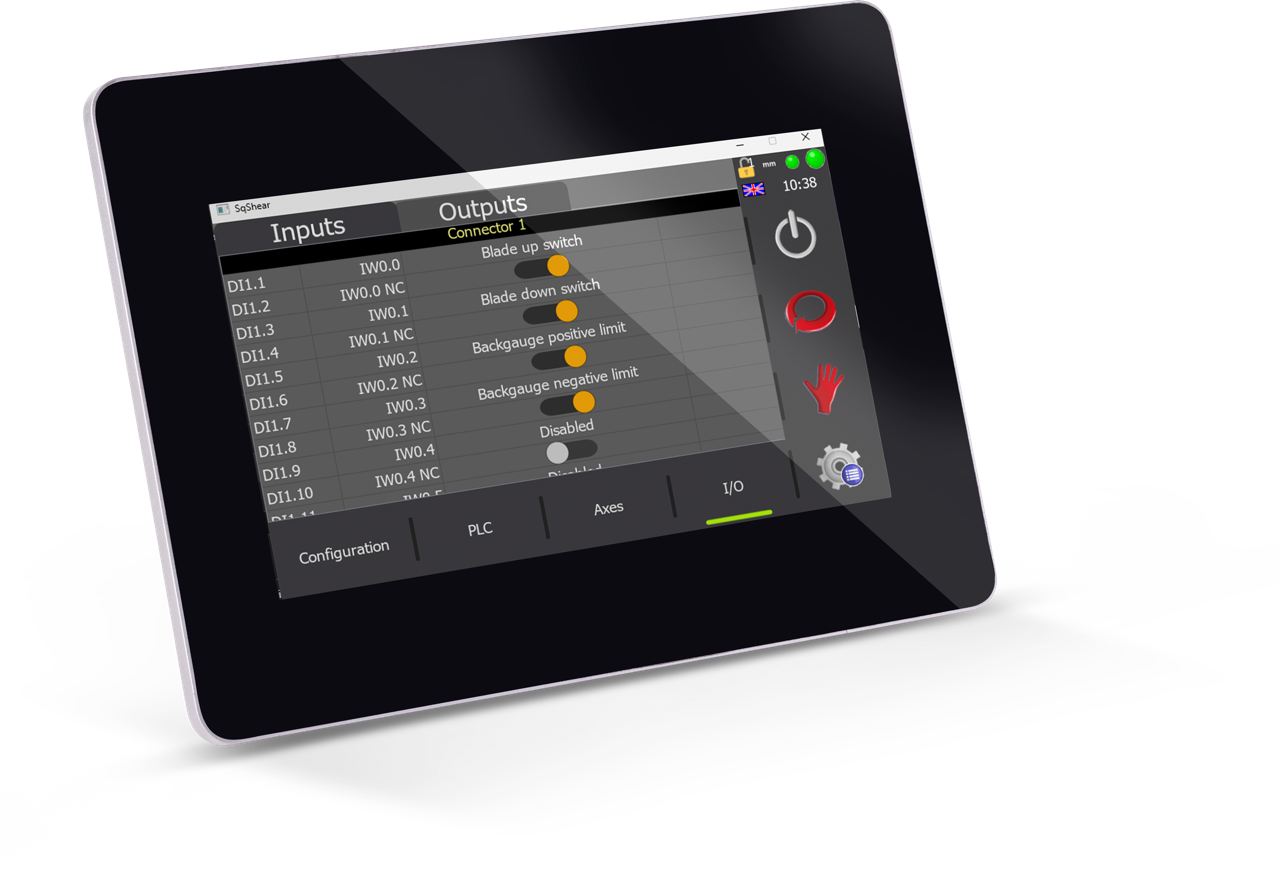

ViS-929

Display	10,1” WVGA (16:9 diagonal) configuration - Color active matrix TFT-LCD
Display resolution	1024(R.G.B.) X 600
Touch screen	PCAP 2.8 mm cover glass (10 touch point) - Optical bonding process – Aluminium frame
CPU	SMARC Arm based NXP i.MX 8M Plus Quad Quad core ARM Cortex-A53 1.8 GHz - ARM Cortex-M7 800 MHz
CPU Dynamic RAM	1 GBytes LPDDR4 SDRAM
Graphic controller	GC7000UL 2D/3D Graphics Processor
Memory	8 GBytes eMMC Flash - 512 KBytes FRAM
Battery-backed RAM	N/A
Ethernet ports	1 x Gigabit Ethernet – LAN connection
Serial Ports	N/A
External Display	N/A
USB Ports	2 x USB 2.0 – USB stick max 1m cable length
Operative System	Linux Real Time
Power supply	24Vdc ± 20% - 50 W
Temperature working range	+5 ÷ +50°C
Marks	CE

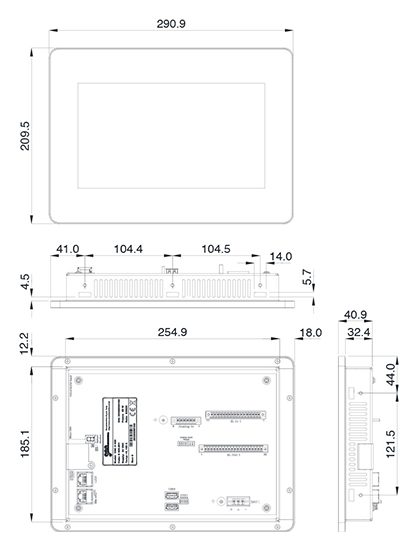

Dimensions / Weight	(H x L x P) 209.5 x 290.9 x 40.9 mm / 2.6 kg
Can-Open	N/A
Ethercat	1 x Ethercat interface - Analog and digital I/O – Digital Axes
Local digital inputs	16 x 24 Vdc PNP optoisolated - IEC61131-2 compliant
Local digital outputs	16 x 24 Vdc PNP @1,2 A optoisolated - Protected against overcurrent, short circuit
Analog inputs	2 x 12 Bit resolution – 0-5 V / 0-10 V range - 2 x 12 Bit resolution – 0- 5V / 0-10 V / 0-12 V range
Analog outputs	N/A
Maximum axes number	4
Analog axes management	N/A
Driver Valves	N/A
I/O remote ESAring interface	N/A
PWM output	N/A

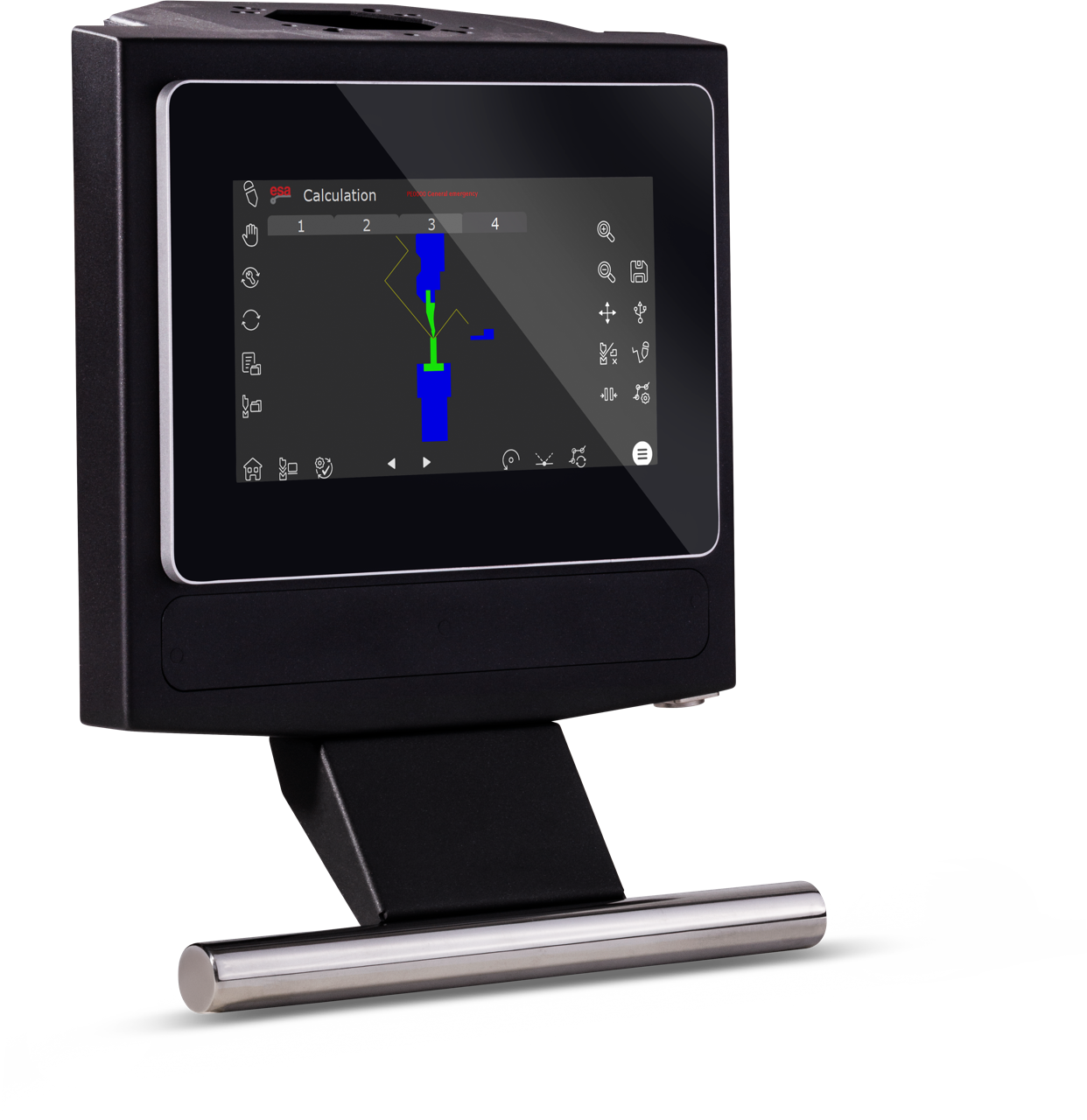

ViS-929 Housing

Display	10,1” WVGA (16:9 diagonal) configuration - Color active matrix TFT-LCD
Display resolution	1024(R.G.B.) X 600
Touch screen	PCAP 2.8 mm cover glass (10 touch point) - Optical bonding process – Aluminium frame
CPU	SMARC Arm based NXP i.MX 8M Plus Quad Quad core ARM Cortex-A53 1.8 GHz - ARM Cortex-M7 800 MHz
CPU Dynamic RAM	1 GBytes LPDDR4 SDRAM
Graphic controller	GC7000UL 2D/3D Graphics Processor
Memory	8 GBytes - eMMC Flash - 512 KBytes FRAM
Battery-backed RAM	N/A
Ethernet ports	1 x Gigabit Ethernet – LAN connection
Serial Ports	N/A
External Display	N/A
USB Ports	2 x USB 2.0 – USB stick max 1m cable length
Operative System	Linux Real Time
Power supply	24Vdc ± 20% - 50 W
Temperature working range	+5 ÷ +50°C
Marks	CE

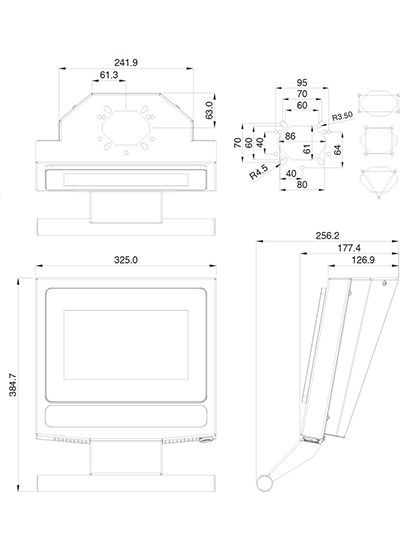

Dimensions / Weight	(H x L x P) 384.7 x 325.0 x 256.2 mm / 6.7 kg with housing
Can-Open	N/A
Ethercat	1 x Ethercat interface - Analog and digital I/O – Digital Axes
Local digital inputs	16 x 24 Vdc PNP optoisolated - IEC61131-2 compliant
Local digital outputs	16 x 24 Vdc PNP @1,2 A optoisolated - Protected against overcurrent, short circuit
Analog inputs	2 x 12 Bit resolution – 0-5 V / 0-10 V range 2 x 12 Bit resolution – 0- 5V / 0-10 V / 0-12 V range
Analog outputs	N/A
Maximum axes number	4
Analog axes management	N/A
Driver Valves	N/A
I/O remote ESAring interface	N/A
PWM output	N/A
