Suite Esa 4to5.
And you are immediately in Industry 5.0.
Industry 5.0 was born as an evolution of Industry 4.0: while the fourth industrial revolution was based on the concepts of automation and interconnection of machines, the fifth focuses instead on the well-being of people and society, including the environment.
Production efficiency combined with environmental sustainability: the new paradigm of Industry 5.0
- The philosophy of Industry 5.0 foresees that the search for maximum production efficiency is linked to its sustainability, for a production cycle that is increasingly less energy-intensive and with a tolerable environmental impact.
- This objective requires systematic actions to control energy consumption, to identify any waste or malfunctions in real time.
By integrating innovative solutions and intelligent measurement systems on machines, a smart 5.0 company can perform more accurate analysis of energy data and optimize process profitability, while reducing carbon emissions and any dispersion into the environment at the same time.
Industry 5.0 is the near future:
with Esa 4to5 devices and software it’s already today.
Esautomotion’s Esa 4to5 suite uses a consumption detector and Data Logger software, developed in collaboration with RemSoft, to measure the energy consumed by a machinery or a plant (or a part of it) and save the data in a database for further analysis.
Install, detect, analyze, save.
Being 5.0 with Esa 4to5 is really simple.
Esa 4to5 is made up of:
“Plug&play” EnergyMeter for measuring consumption.
Installed on new or already operational machines, it guarantees an easy and quick connection thanks to the use of 4 independent sensors with an RJ12 connector for reading the current. They can be wired without modifying the electrical system. The data detected by the sensors are read by the control unit via TCP/IP protocol and stored to allow consultation at any time.
This software collects the production and consumption data of each machine in real time, converting them into an exportable format readable by external software.
With Esa 4to5 you can check the trend of energy consumption with any mobile device at any time, even remotely, and intervene immediately in the event of anomalies (NB: optional Smart Tracer package required).
Choose the Esa 4to5 configuration suiting best
to your production reality.
Thanks to the exchange of data via Ethernet, Esa 4to5 can manage both standard configurations
(energy consumption detection only) and more complex ones, being able to acquire and save production data on a PC
or server, according to the present scheme:

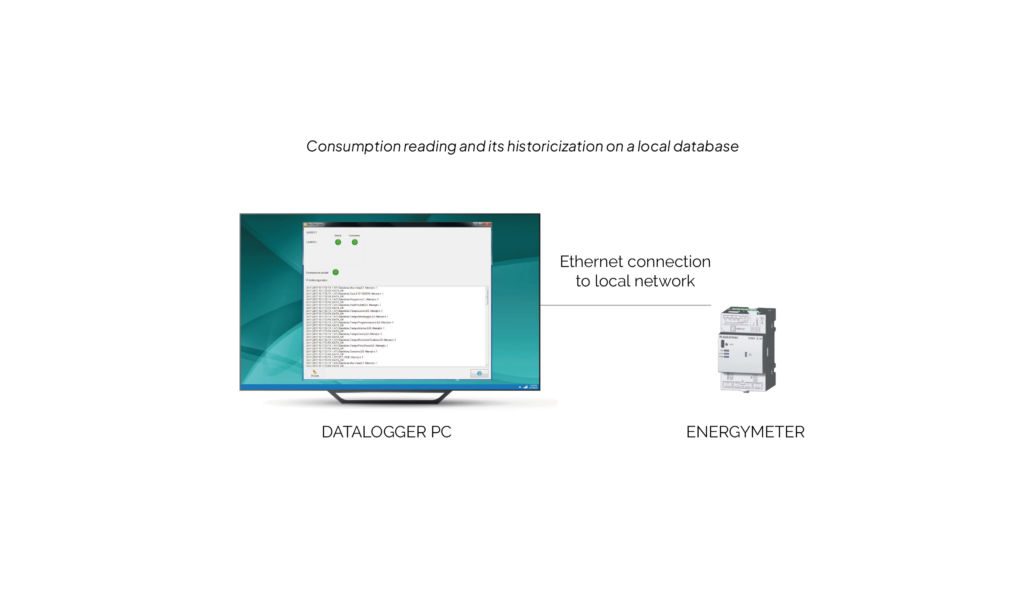

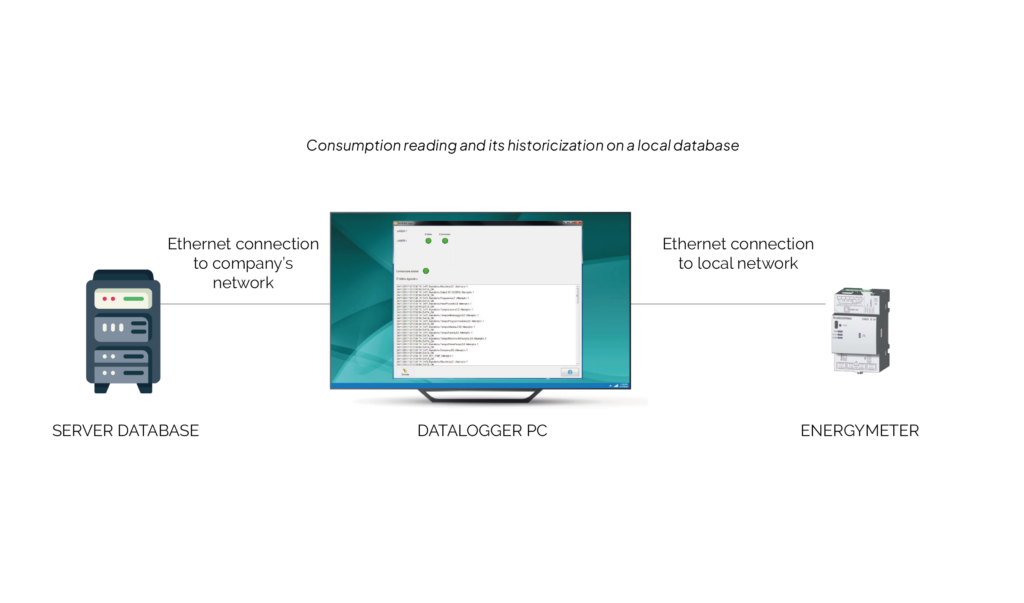

1. Energy consumption data collection only: EnergyMeter + Data Logger
This architecture, which can be certified as Industry 5.0, does not allow the collection of production data, so only communication between the Data Logger and EnergyMeter will be active, with the possibility of saving the data on a company’s server or on a PC.
Available in two configurations:

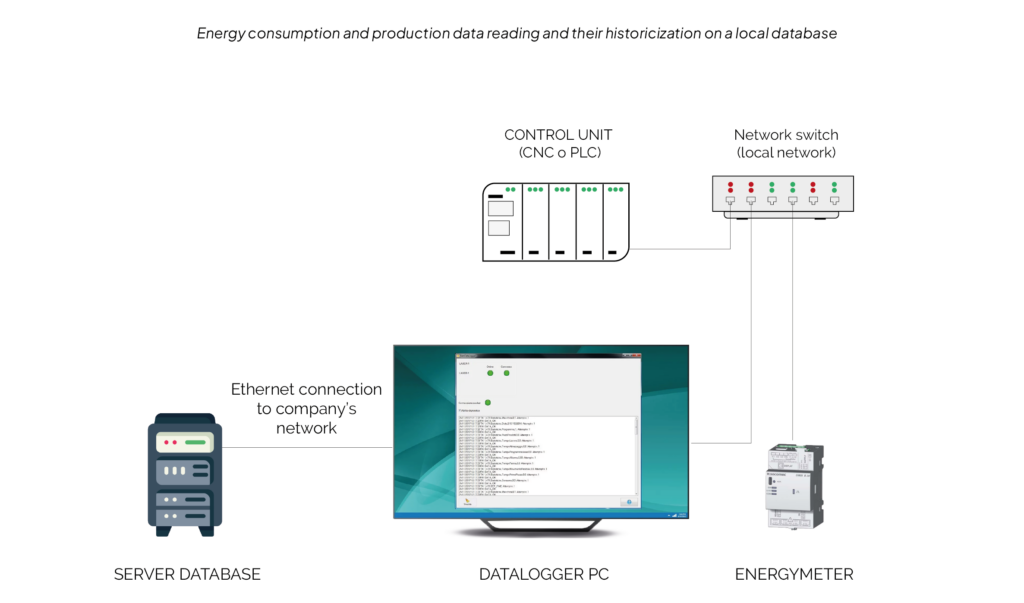

2. Collection of energy consumption and production data
This architectural solution also provides for the collection of production data via connection of the Data Logger with the Esautomotion CNC of the machine, thus satisfying the requirements of both Industry 4.0 and 5.0.
Two configurations are available:
NB: the machinery on which you want to install the system must be connected to a PC (the same supplied with the machinery, if present) on which to install the Data Logger.
If you are already using EsaFour4 suite by Esautomotion, entering Industry 5.0 is even easier.
If the Data Logger app from the EsaFour4 suite is already installed on your machines, you will simply need to purchase the Esa 4to5 EnergyMeter to collect energy consumption data and thus be Industry 5.0 certifiable. Simple, isn’t it?
