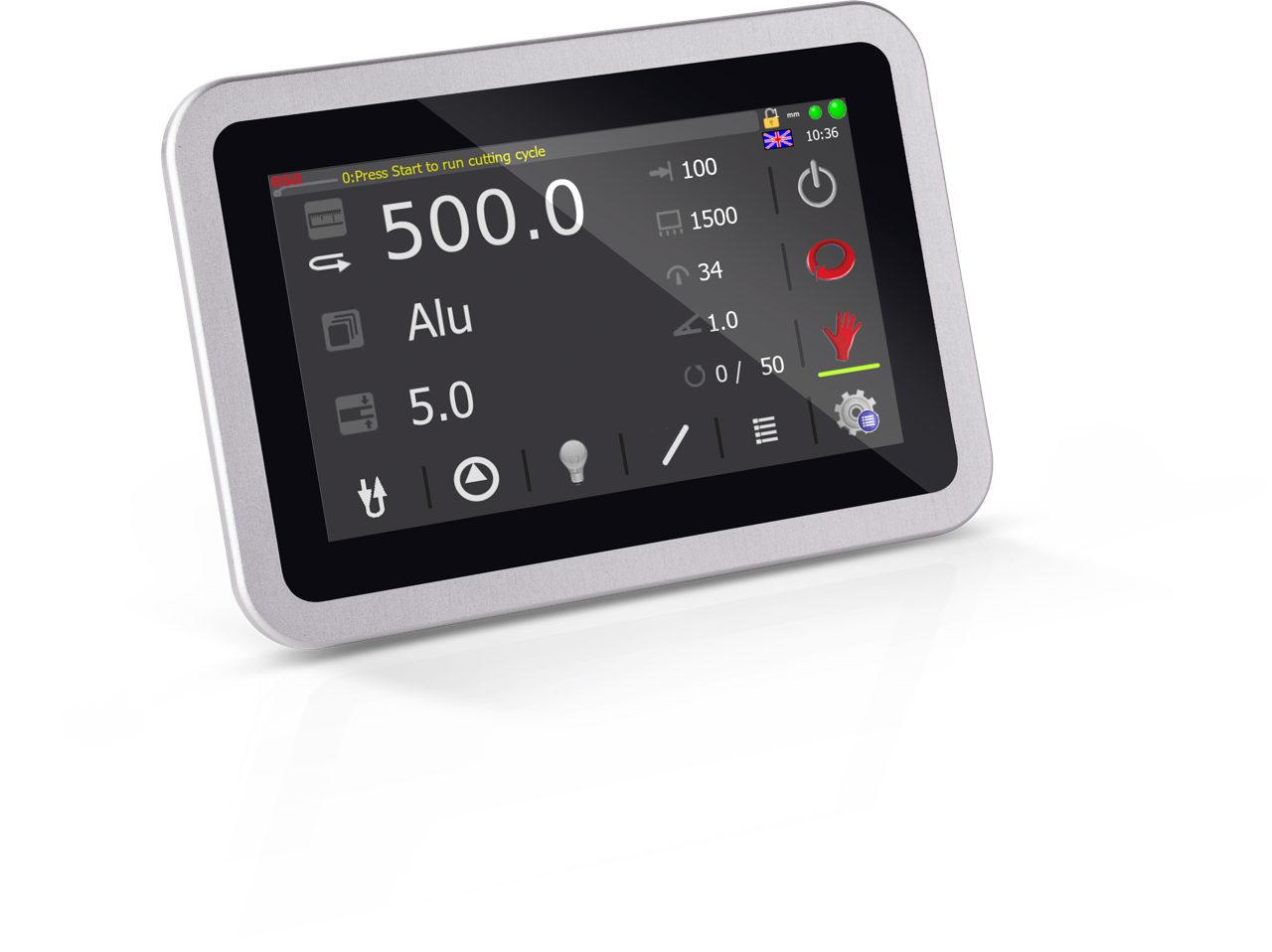

ViS-925

Display	7” WVGA (16:9 diagonal ) configuration - Color active matrix TFT-LCD
Display resolution	800 (R.G.B.) x 480
Touch screen	PCAP 1.8 mm cover glass (5 touch point) - Optical bonding process – Aluminium frame
CPU	SMARC Arm based NXP i.MX 8M Plus Quad - Quad core ARM Cortex-A53 1.8 GHz ARM Cortex-M7 800 MHz
CPU Dynamic RAM	1 GBytes LPDDR4 SDRAM
Graphic controller	GC7000UL 2D/3D Graphics Processor
Memory	8 GBytes eMMC Flash - 512 KBytes FRAM
Battery-backed RAM	N/A
Ethernet ports	1 x Gigabit Ethernet – LAN connection
Serial Ports	1 x RS-232 - General purposes uses
External Display	N/A
USB Ports	1 x USB 2.0 – USB stick max 1m cable length
Operative System	Linux Real Time
Power supply	24 Vdc ± 20% - 50 W
Temperature working range	+5 ÷ +50°C
Marks	CE

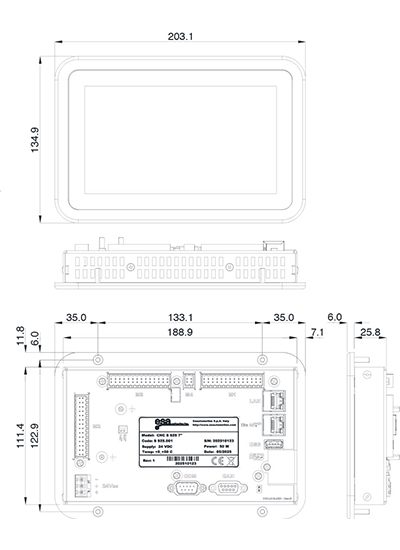

Dimensions / Weight	(H x L x P) 134.9 x 203.1 x 31.8 mm / 1.0 kg
Can-Open	1 x CANopen DS3101 – Digital axes
Ethercat	1 x Ethercat interface - Analog and digital I/O – Digital Axes
Local digital inputs	16 x 24 Vdc PNP optoisolated - IEC61131-2 compliant
Local digital outputs	16 x 24 Vdc PNP @1,2 A optoisolated - Protected against overcurrent, short circuit
Analog inputs	3 x 12 Bit resolution – 0-10 V range
Analog outputs	2 x 12 Bit Resolution - 0-10 V range
Maximum axes number	3
Analog axes management	3 x 14 Bit Resolution -10 ÷ +10 V Analog outputs - 3 x NPN/Push Pull/Line Drive 5 V Encoders
Driver Valves	N/A
I/O remote ESAring interface	N/A
PWM output	N/A
