ViS-920

Display	7” WVGA (16:9 diagonal ) configuration - Color active matrix TFT-LCD
Display resolution	800(R.G.B.) x 480
Touch screen	PCAP 1.8 mm cover glass (5 touch point) - Optical bonding process – Aluminium frame
CPU	System-on-Module (SoM) STM 32 MP1 157 - Dual Arm® Cortex®-A7 650 MHz - Cortex®-M4 209 MHz
CPU Dynamic RAM	512 MBytes
Graphic controller	Integrated 3D GPU at 533 MHz
Memory	512 MBytes Nand Flash - 512 KBytes FRAM, Saving retentive data - Micro SD card 4 GBytes
Battery-backed RAM	N/A
Ethernet ports	1 x 10/100 Mbit – LAN connection
Serial Ports	1 x RS-232 - General purposes uses
External Display	N/A
USB Ports	1 x USB 2.0 – USB stick max 1m cable length
Operative System	Linux Real Time
Power supply	24 Vdc ± 20% - 30 W
Temperature working range	+5 ÷ +50°C
Marks	CE

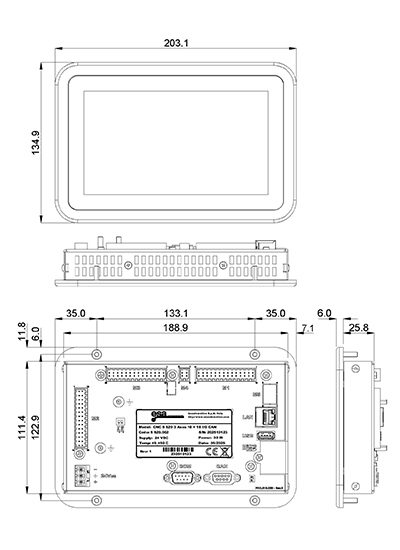

Dimensions / Weight	(H x L x P) 134.9 x 203.1 x 31.8 mm / 1.0 kg
Can-Open	1 x CANopen DS3101 - Digital axes
Ethercat	N/A
Local digital inputs	16 x 24 Vdc PNP optoisolated - IEC61131-2 compliant
Local digital outputs	16 x 24 Vdc PNP @1,2 A optoisolated - Protected against overcurrent, short circuit
Analog inputs	3 x 12 Bit resolution – 0-10 V range
Analog outputs	2 x 12 Bit Resolution - 0-10 V range
Maximum axes number	3
Analog axes management	3 x 14 Bit Resolution -10 ÷ +10 V Analog outputs - 3 x NPN/Push Pull/Line Drive 5 V Encoders
Driver Valves	N/A
I/O remote ESAring interface	N/A
PWM output (optional)	1 x 12-24 Vdc power supply – frequency 0-100 kHz range – Duty cycle 0-100% range.
