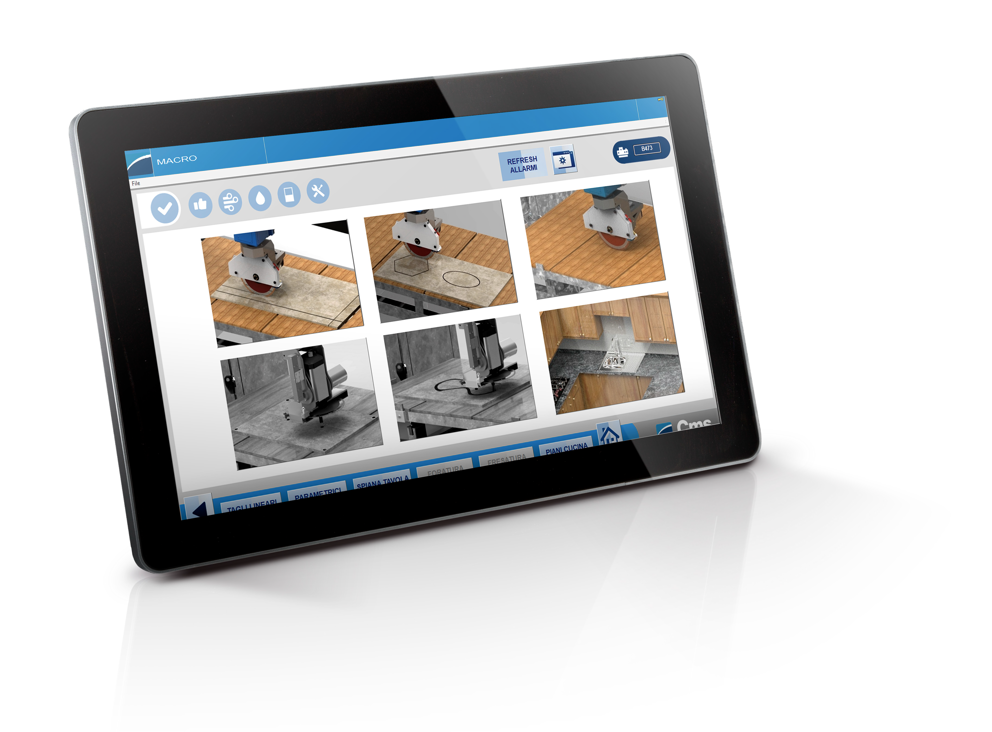

ViS-860 W

Display	18.5” Full HD (16:9 diagonal) configuration - Color active matrix TFT-LCD
Display resolution	1920(R.G.B.) X 1080
Brightness	350nits
Contrast	1000:01:00
Touch screen	PCAP 3 mm cover glass (10 touch point) - Optical bonding process – Aluminium frame
CPU	Intel i3
CPU Dynamic RAM	4 GBytes DDR4
Graphic controller	Intel® HD Graphics
Solid State Disk	Msata 256 GB
Ethernet ports	2 x GbE port - LAN connection - Rack CNC connection
Serial Ports	1 x RS-232 - Safe PLC – General purposes uses
External Display	1 x HDMI, 1 x VGA - Double display configuration max. 2m cable length
USB Ports	2 x USB 2.0, 2 x USB 3.0 - USB stick max 1m cable length Double display configuration max 2m cable length
Wi-Fi	N/A
Maximum axes number	256
Operative System	Windows® 10 IOT Enterprise
Power supply	24 Vdc ± 20% - 100 W
Temperature working range	+5 ÷ +40°C
Marks	CE
Dimensions (H x L x P) [mm]	288.0 x 470.4 x 68.5
Weight	6.5 kg

ViS-860 W Housing

Display	18.5” Full HD (16:9 diagonal) configuration - Color active matrix TFT-LCD
Display resolution	1920 (R.G.B.) X 1080
Brightness	350nits
Contrast	1000:01:00
Touch screen	PCAP 3 mm cover glass (10 touch point) - Optical bonding process – Aluminium frame
CPU	Intel i3
CPU Dynamic RAM	4 GBytes DDR4
Graphic controller	Intel® HD Graphics
Solid State Disk	Msata 256 GB
Ethernet ports	2 x GbE port - LAN connection - Rack CNC connection
Serial Ports	1 x RS-232 - Safe PLC – General purposes uses
External Display	1 x HDMI, 1 x VGA - Double display configuration max. 2m cable length
USB Ports	2 x USB 2.0, 2 x USB 3.0 - USB stick max 1m cable length Double display configuration max 2m cable length
Wi-Fi	N/A
Maximum axes number	256
Operative System	Windows® 10 IOT Enterprise
Power supply	24 Vdc ± 20% - 100 W
Temperature working range	+5 ÷ +40°C
Marks	CE
Dimensions (H x L x P) [mm]	399.1 x 470.4 x 225.0
Weight	9.5 kg
